Product Description

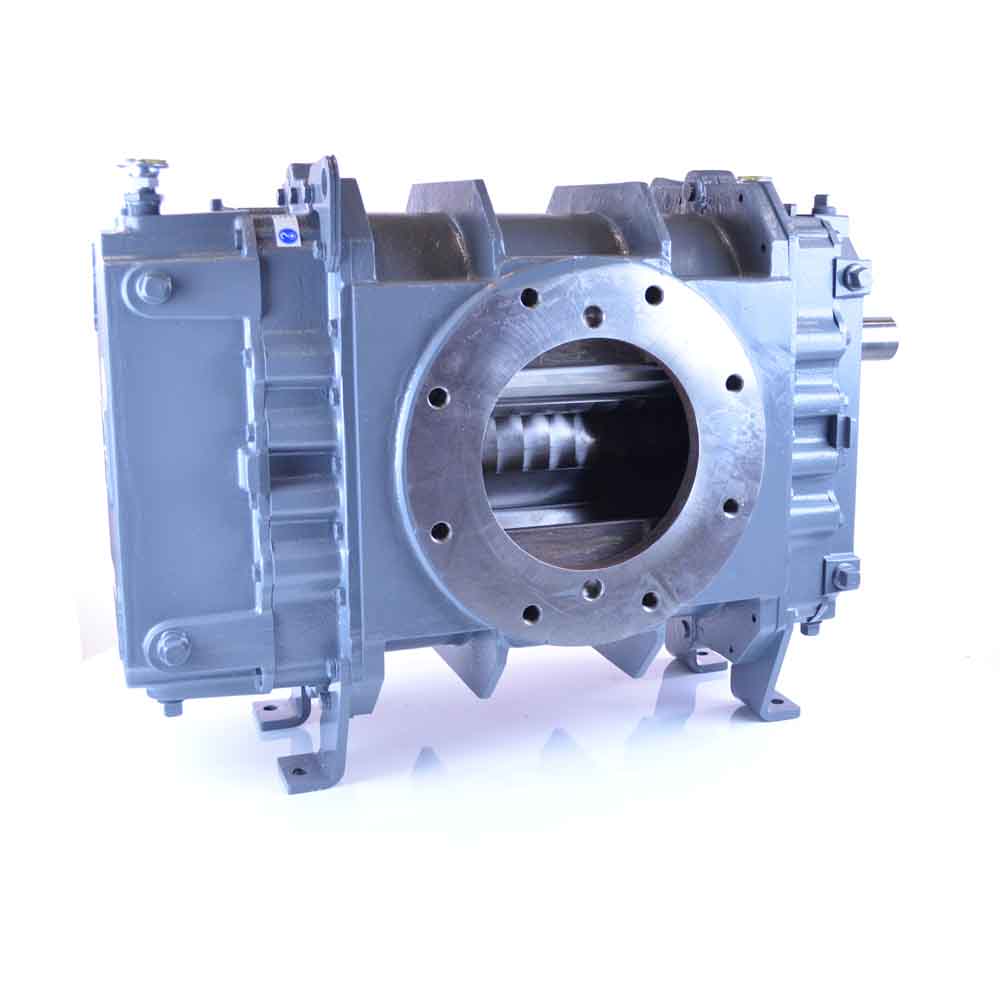

ROOTS™ RAM™ Frame 616
Flow Range: to 2162 CFM
Max Δ Pressure: 15 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 3000
Minimum RPM: 636
Max ΔT: 230˚F
Connection: 8″ FLG
Shaft Dia.: 2″
Drive End Lubrication: Oil
Gear End Lubrication: Oil
Required Oil for Horizontal Unit: 145 ounces
Required Oil for Vertical Unit: 83 ounces
Unit Weight: 650 pounds (295.5 kg)
Shipping Container: Skid 54″ x 32″ x 30″ (LxWxH)
Weight with skid is 687 lbs (312.3 Kg)
ROOTS BOM# 85154020 BL,BR
ROOTS BOM# 85147020 LB,LT,RB,RT,TL,TR

Plugged Impellers
In certain applications, such as pneumatic conveying, plugged impellers may be needed to keep material from building up in the rotor and creating an imbalance. RAM, RCS, and RAS units can be supplied with plugged impellers with additional cost and lead time. Contact us to discuss your application with one of our professional application engineers.

ROOTS™ RAM™ Frame 616 Rotary Positive Blower

BOM Number: 85147020 (LB-LT-RB-RT-TL-TR), 85154020 (BL-BR) SKU: N/A Category:

$19,629.00

  • Meets Build America Buy America Act requirements
Shipping Weight: 705 lbs
Shipping Dimensions: 54 × 32 × 29 in
Max Flow:

2162

Max Pressure:

15 psi

Max Vacuum:

16" Hg

Max Speed:

3000 RPM

Manufacturer:
